Product Details

3 Axes Analysis Force Plates

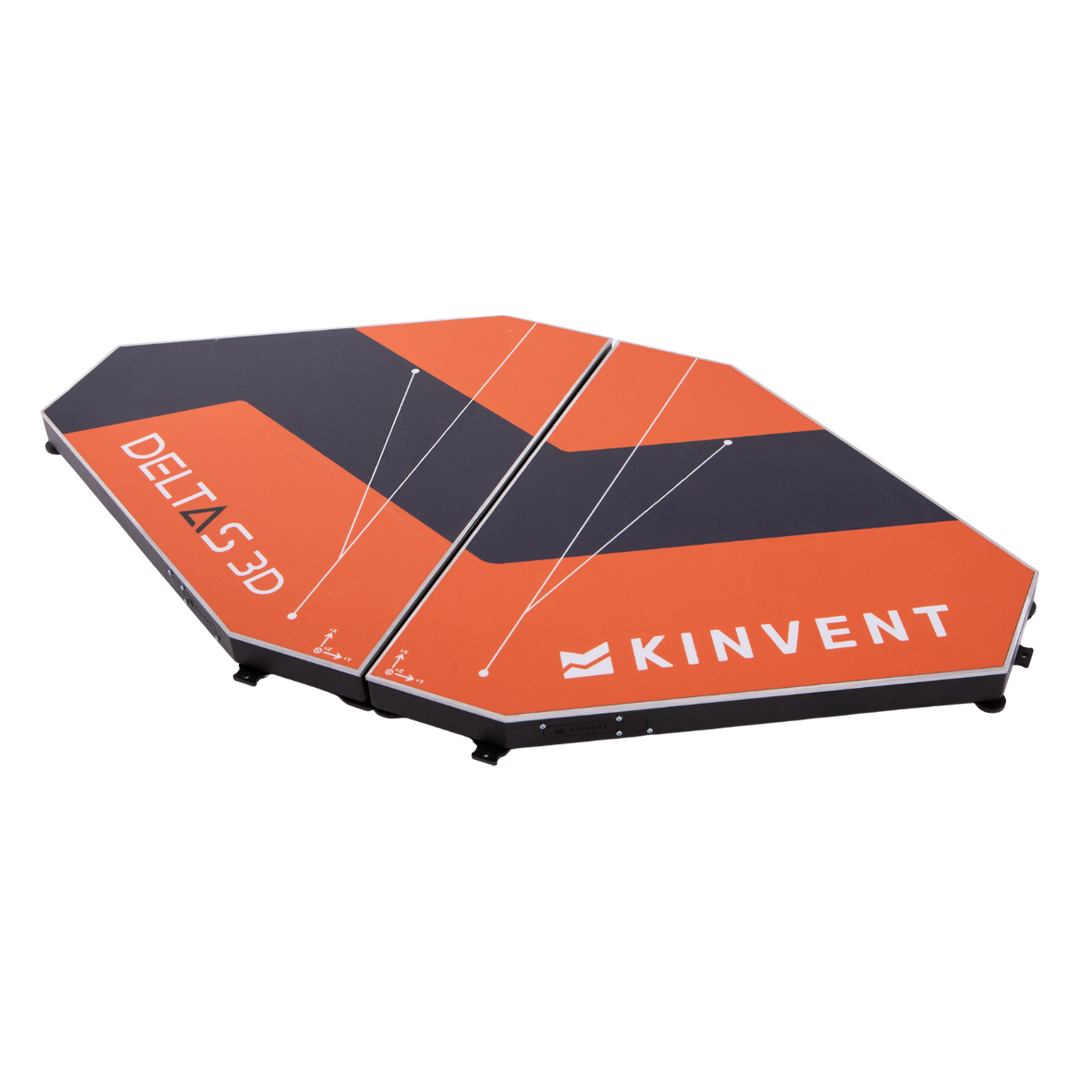

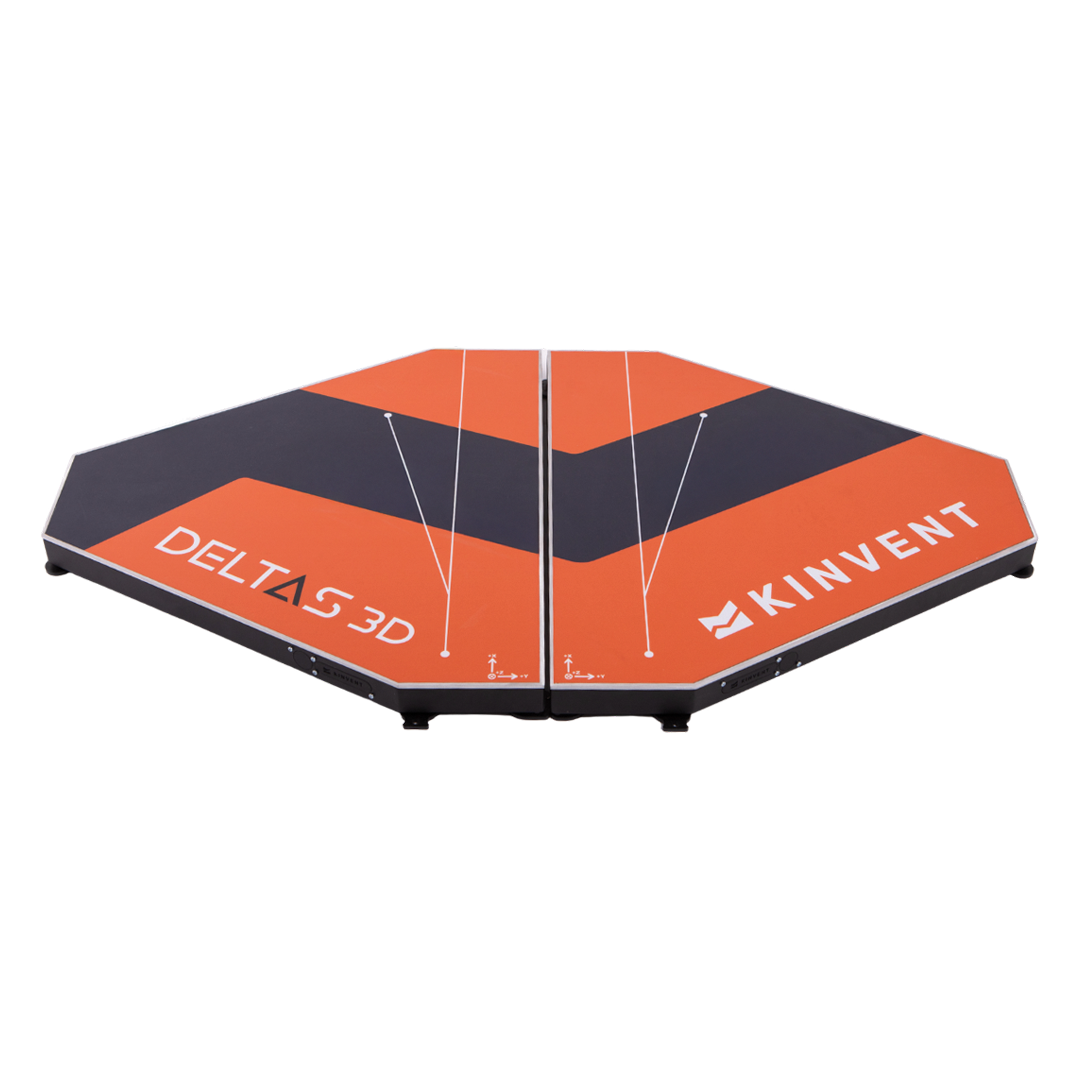

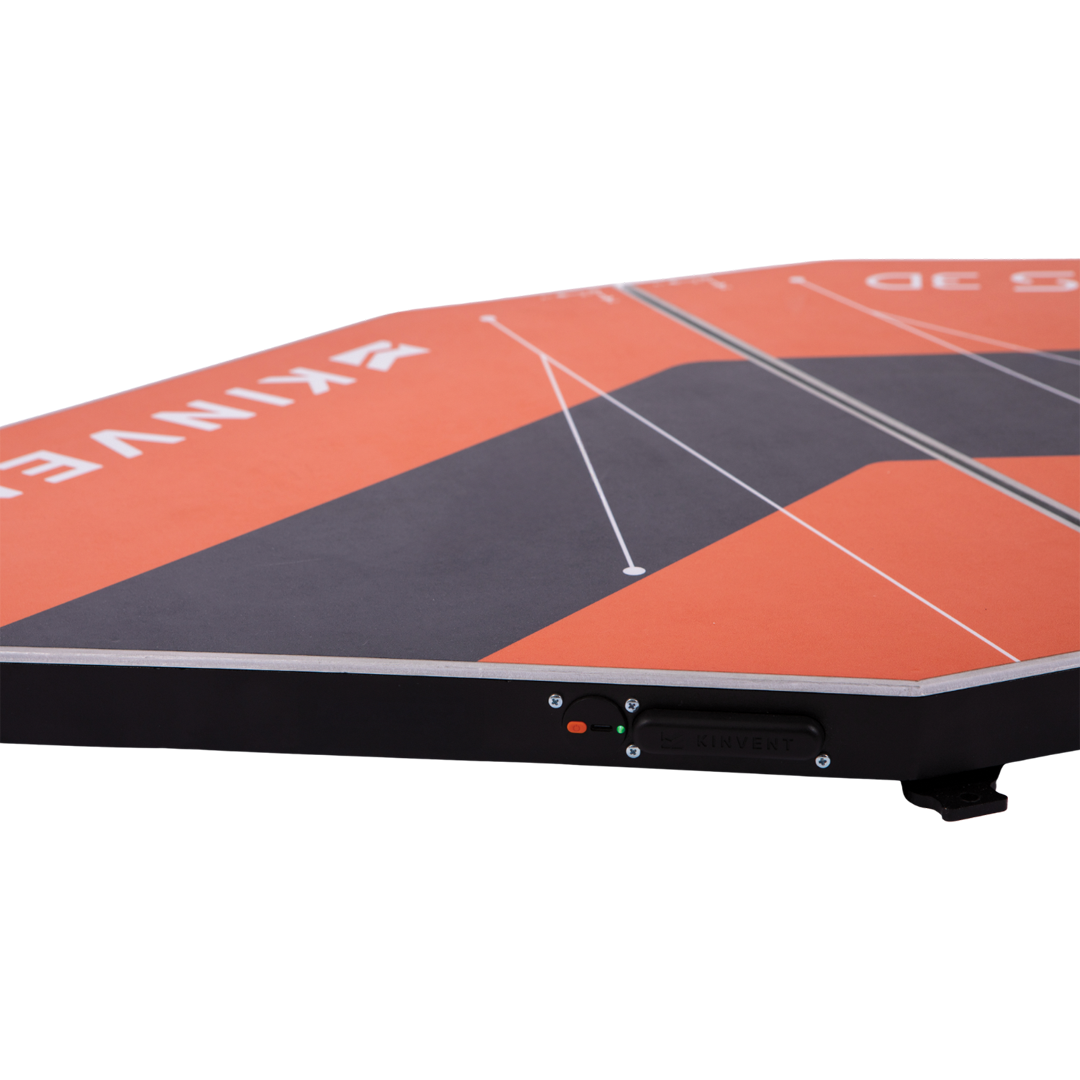

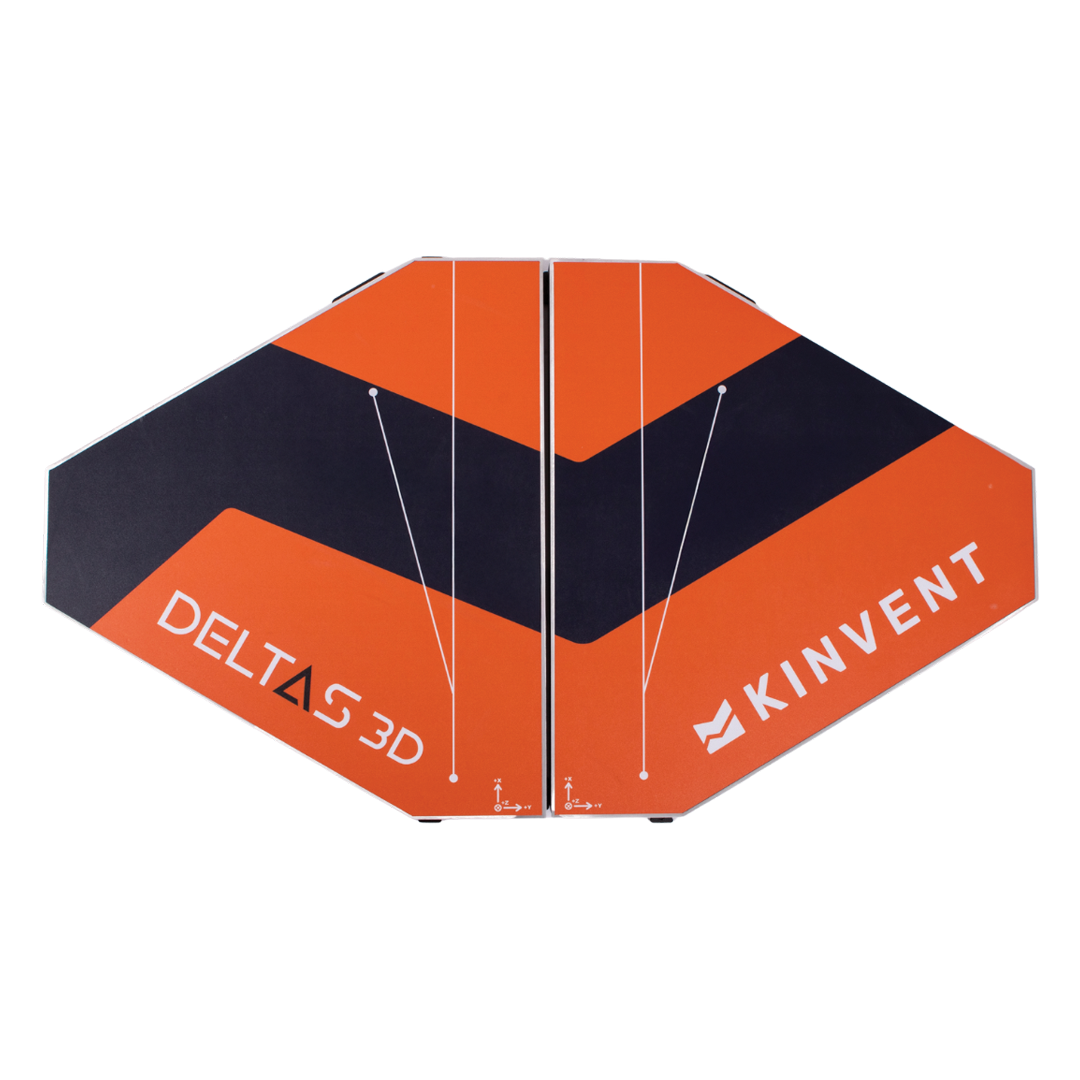

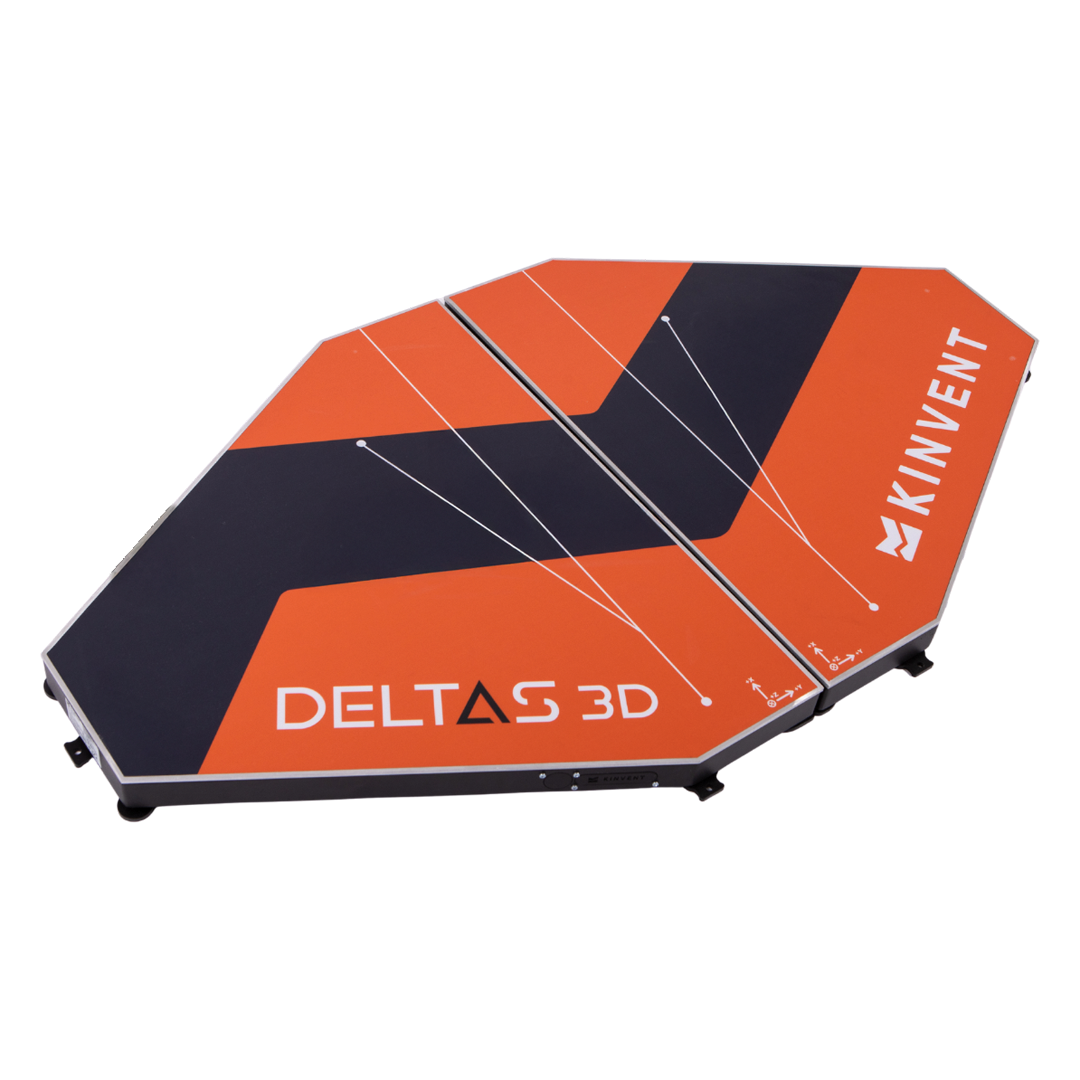

The Next-Gen Portable 3-Axis Force Plates

Track movement in every axis, with 3D Deltas. The 3D Deltas track not only vertical force but also horizontal force and change of direction and get real-time feedback to maximise athletic performance.

Product Benefits

Portable & Wireless Design

Ready in seconds - no cables, no hassle. Fully wireless, 3D Deltas offer a clean setup and maximum flexibility in any environment.

High-Frequency 3D Force Measurement

Equipped with 1000 Hz acquisition frequency and 3D Measurements (X, Y, Z axes), 3D Deltas deliver highprecision data (±0.1%) suitable for advanced analysis in real-world conditions.

Versatile Applications

From strength and conditioning to rehab and high-performance environments, 3D Deltas adapt to a wide range of needs and disciplines.

Real-Time Feedback

Access immediate force-time data for fast interpretation and seamless integration into a wide variety of protocols, applications, and workflows.

High Load Capacity

Built for demanding environments, each platform supports 1000 kg vertical load, ensuring durability and reliability across diverse use cases and training intensities.

Product Specifications

Dimensions & Weight

• Dimensions: 52 x 564 x 634mm
• Weight: 15.5kg per platform


Performance

• Max Force: 2000kg (1000kg per platform)
• Acquisition Frequency: 1000 Hz

• Accuracy: ±0.1%


Connectivity

• Bluetooth: 2.4 GHz
• Wireless Range: up to 20m
• Battery Life: 12 hours of continuous use

• Charge Time: 2 hours

• Auto-Sleep Mode: after 10 minutes of inactivity
